Ground Source Heat Pumps (GSHP)

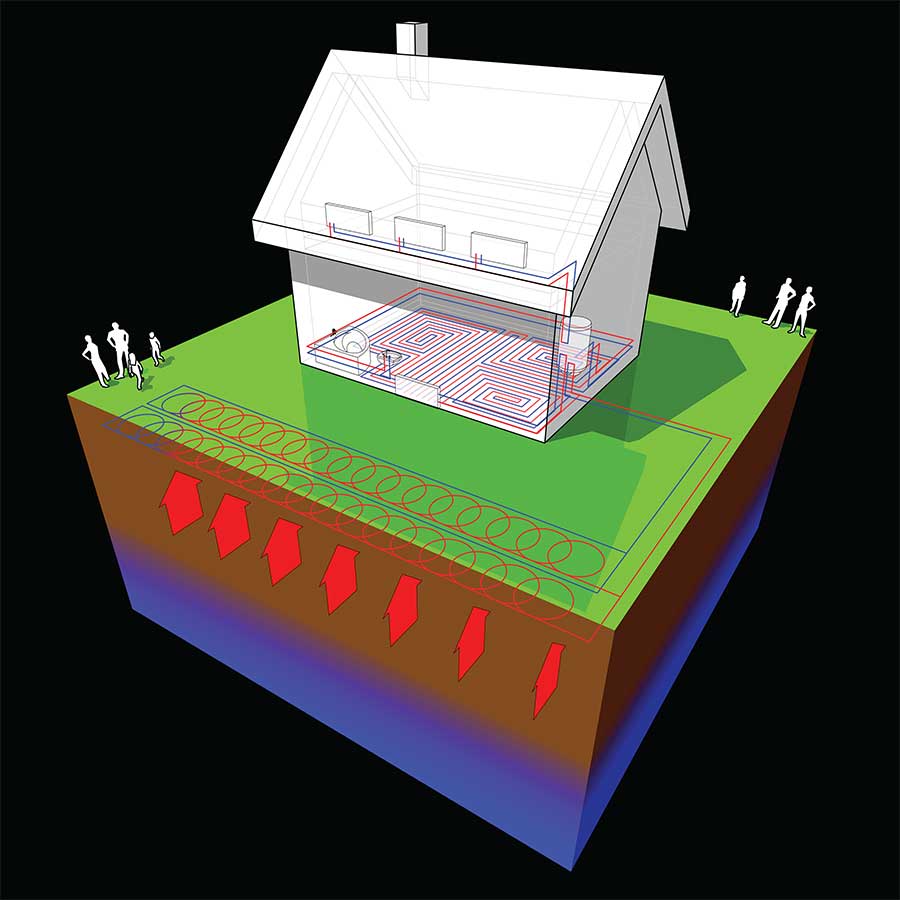

Ground Source Heat Pumps (GSHPs) are energy-efficient heating and cooling systems that use the Earth's stable temperature beneath the surface to transfer heat to or from a building. They work on the principle of heat exchange and are commonly used for residential and commercial HVAC systems. GSHPs consist of a closed-loop system of pipes or tubes buried in the ground or submerged in a body of water. The Earth's temperature below the surface remains relatively stable throughout the year, making it a viable heat source. In a ground loop system, the heat transfer fluid absorbs heat from the ground through underground pipes and gains heat energy from the Earth. In cooling mode, the process is reversed, and the heat pump extracts heat from indoor air or water, transferring it to the ground loop or water source. Key benefits include energy efficiency, environmental benefits, cost savings, reliability, and consistent performance. They provide significant long-term energy and cost savings while reducing environmental impact.

COP

• As with ASHPs, GSHPs operate using electricity; it needs to be certain that the heat energy gained from the earth or air significantly exceeds the operating electrical energy. The ratio between heat gained and electricity expended is called the ‘Coefficient of Performance’ (COP).

• The system should be getting a COP ratio of 3.0 or above. Verify with the manufacturer/supplier that their equipment achieves this ratio consistently.

• Heat pumps should not be used to provide Domestic Hot Water (DHW) in conjunction with Electrical Immersion Heaters. The overall electricity load will be immense - effectively derailing a low-energy ambition.

Retrofitting a GSHP

Retrofitting a Ground Source Heat Pump (GSHP) to a house in the UK can be a complex process that involves various steps. It's important to note that this is a significant home improvement project that typically requires professional expertise and compliance with local building codes and regulations. Here's a general overview of the process:

1. Assessment and Planning:

• Start by thoroughly assessing the building to determine if it's suitable for a GSHP system.
• Factors to consider include soil conditions, space for ground loops or boreholes, and heating needs.
• Calculate the building's heat load to determine the appropriate size and capacity of the GSHP system.

2. Design and Permitting:

• Work with a qualified GSHP installer or engineer to design a system that meets your specific needs and complies with local regulations.
• Obtain any necessary permits or approvals from local authorities or building control.

3. Choosing the Type of GSHP System:

• Decide whether you want an open-loop (water-source) or closed-loop (ground-source) GSHP system. Closed-loop systems are more common in the UK due to their suitability for the climate.

4. Installation:

The installation process will vary depending on the chosen system, but it typically involves the following steps:
• Excavation for ground loops or boreholes (if using a closed-loop system).

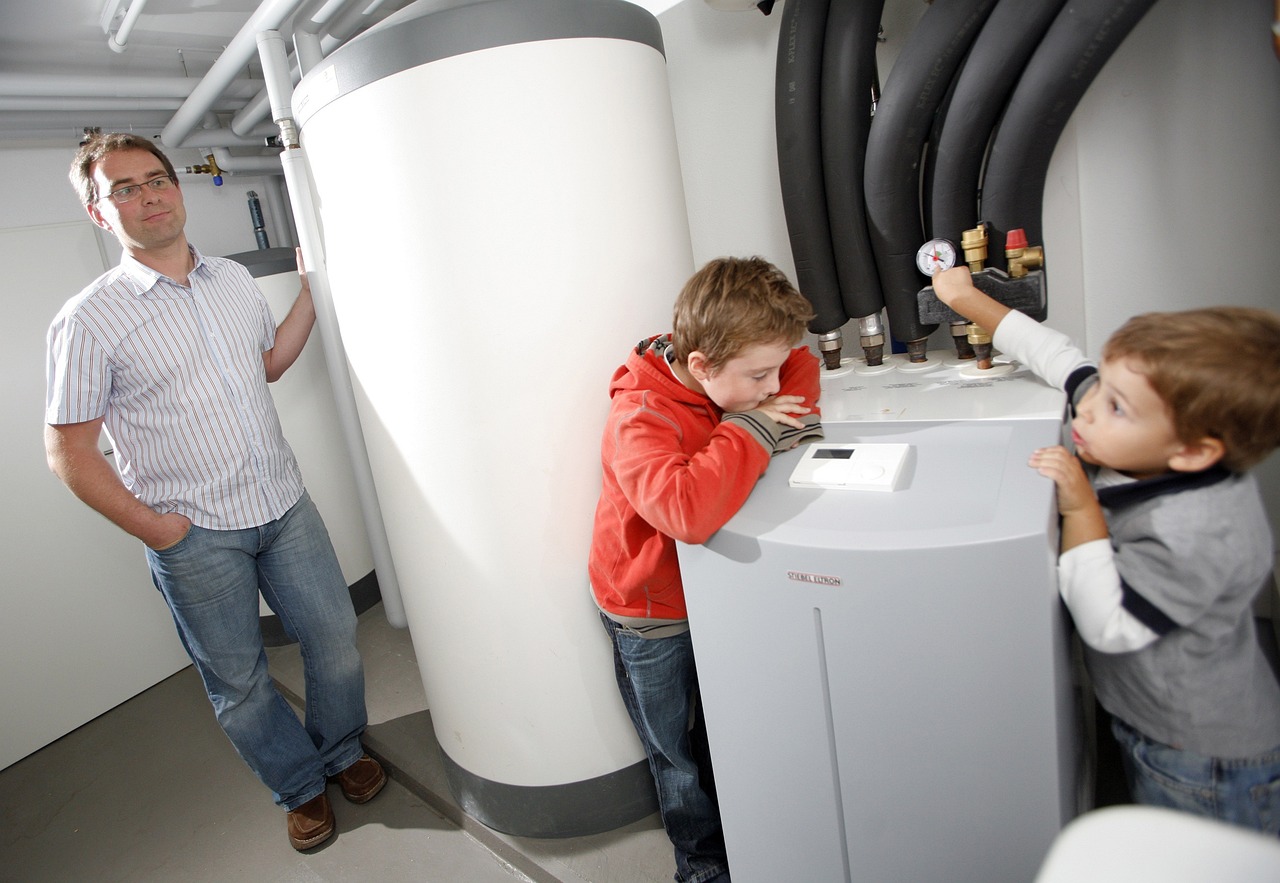

• Installation of the GSHP unit indoors, which includes the heat pump and associated components.
• Connection of the ground loop or borehole to the heat pump.
• Installation of a heat distribution system (e.g., underfloor heating or radiators).
• Electrical and plumbing work to connect the GSHP to your home's electrical and water supply.

5. Testing and Commissioning:

After installation, the system must be thoroughly tested and commissioned to ensure it operates efficiently and safely.

6. Monitoring and Maintenance:

GSHP systems require regular maintenance to maintain their efficiency. This includes checking the glycol levels in the ground loop (if applicable), cleaning filters, and inspecting the heat pump.

7. Financial Incentives:

Investigate available financial incentives or subsidies for renewable energy systems in your area, as these can help offset the initial installation costs.

8. Ongoing Operation:

Operate the GSHP system according to the manufacturer's recommendations to maximise efficiency and reduce energy consumption.

9. User Education:

Ensure all household members understand how to operate the GSHP system and its controls effectively.

10. Regular Servicing

Schedule regular servicing and maintenance with a qualified technician to keep the system running efficiently and extend its lifespan.

But beware.......

Ground Source Heat Pumps (GSHPs) are a sustainable and energy-efficient technology for heating and cooling buildings. However, like any technology, they do have some drawbacks and considerations. Here are some of the drawbacks associated with installing a ground source heat pump:

1. High upfront cost:

Ground Source Heat Pumps systems are expensive to install compared to traditional heating and cooling systems, such as air-source heat pumps or furnaces. The cost includes drilling or excavating for the ground loop, heat pump unit, and installation.

2. Site-specific challenges:

The feasibility of installing a GSHP system depends on the availability of space for ground loops (either horizontally or vertically) and the geological characteristics of the site. If your property needs more space or has challenging geological conditions, it may not be a viable option.

3. Installation complexity:

Installing a ground source heat pump system is more complex and time-consuming than other HVAC systems. This can lead to higher installation costs and potential disruptions during the installation process.

4. Long payback period:

While GSHPs are energy-efficient and can result in lower operating costs, the high upfront investment can result in a longer payback period. It may take several years to recoup the initial investment through energy savings.

5. Maintenance requirements:

GSHP systems require regular maintenance to ensure their optimal performance. This includes checking the ground loop for leaks, maintaining the heat pump unit, and monitoring the heat transfer fluid. Maintenance can add to the overall cost of the system.

6. Electrical consumption:

Ground source heat pumps require electricity to operate, so if the electricity used is generated from non-renewable sources, it may impact the overall environmental benefits of the system.

7. Noise and space requirements:

While GSHPs are generally quieter than air-source heat pumps, the heat pump unit can still produce some noise. Additionally, the system requires space for both the indoor and outdoor components.

8. Retrofitting challenges:

Retrofitting an existing building with a GSHP system can be more challenging and costly compared to installing one in a new construction project. The availability of space for ground loops and the integration with existing HVAC systems may pose challenges.

9. Regulatory and permitting issues:

Depending on your location, there may be regulatory and permitting hurdles to navigate when installing a GSHP system, such as obtaining drilling permits or adhering to local environmental regulations.

10. Variability in efficiency:

The actual efficiency of a GSHP system can vary based on factors like climate, soil conditions, and the quality of the installation. Poorly designed or installed systems may not deliver the expected energy savings.

Despite these drawbacks, Ground Source Heat Pumps can provide significant long-term benefits in terms of energy efficiency and reduced carbon emissions. It's essential to conduct a thorough feasibility study and consider the specific conditions of your property before deciding to install a GSHP system. Consulting with a qualified HVAC professional and conducting a cost-benefit analysis is also advisable to make an informed decision.
